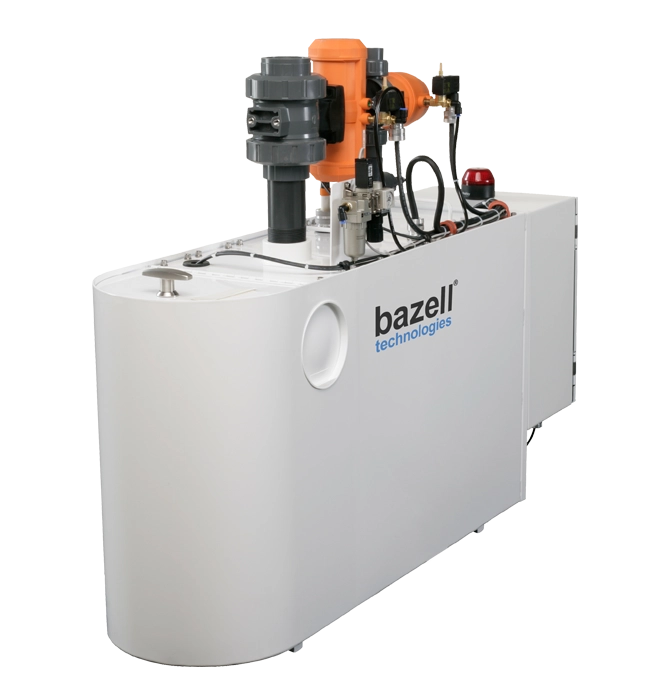

PUMP STATION
The Pump Station automatically pumps all fluid, tape, chips, and long turning strands via overhead pipeline to the chip separators at the coolant management system.
OVERVIEW
Pump Station to expand automation and optimize waste management
Using Satisloh’s Pump Station eliminates the need for tanks and debris bins in the surfacing area. With the smallest footprint possible, it allows positioning between conveyors.
- The Pump Station features a lens debris and fluid pumping system.
- It is available as integrated and standard pump station.

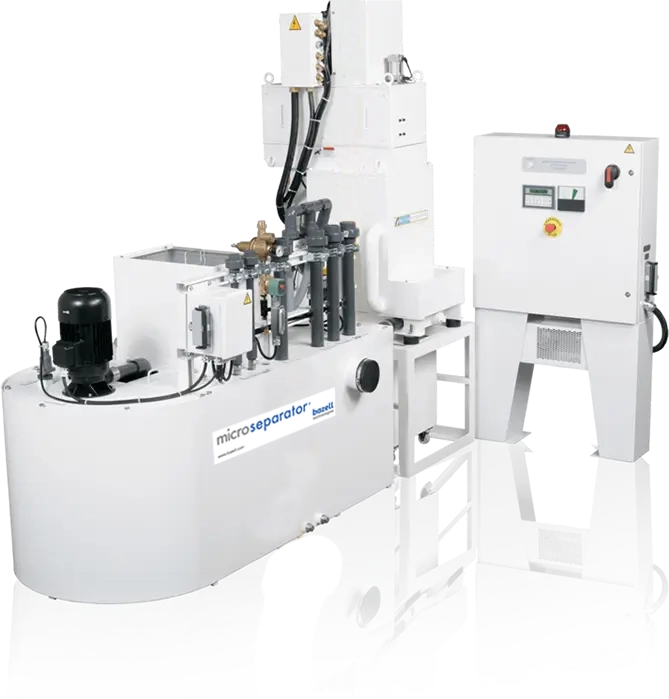

- It is used with Microseparator® HC3 or HC6 systems. All fluid and lens debris is pumped from the generator overhead via plastic pipe to the remote Chip Separator.
- It is compatible with all organic milling debris and all organic finishing debris.
- To be used with one generator. Best suited for VFT-orbit-2i and VFT-orbit-2E (Integrated Pump Station).
- Includes: stainless steel pump and housing, fabricated steel enclosure with lens retrieval access cover, PLC control panel, automatic level control system, automatic valve for supply pipeline, automatic valve for discharge pipeline.
| HC3/HC3 PLUS | HC6/HC6 PLUS | |
|---|---|---|
| Supported Generators | Up to 3 | Up to 6 |
| Required Pump station | 1 per generator | 1 per generator |
| Chip Compactor or Chip Separator with tank | 1 per generator (optional) | 1 per generator (optional) |

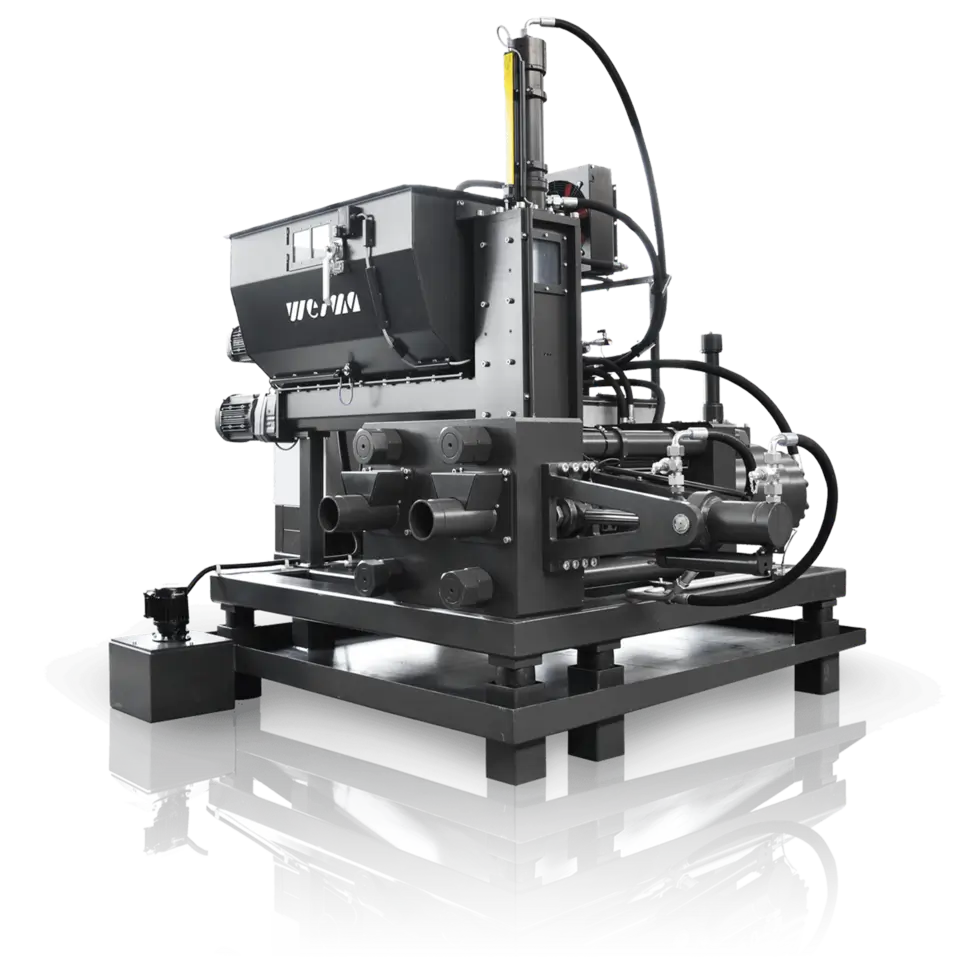

| WEIMA briquette TH600 Vario | 1 per 2 HC3/HC3 Plus | 1 per HC6/HC6 Plus |
| WEIMA briquette TH600 Vario | 1 per 2 HC6/HC6 Plus |
TECH SPECS
| Working Range: | Supports 1 digital lens generators Used with Microseparator® HC3 or HC6 |
|---|---|
| Lens material: | All standard organic materials |
| Dimensions (wxdxh): | 310 x 1170 x 824 mm / 13 x 43 x 33 inches |
| Weight: | 80 kg / 176 lbs |
All technical data subject to change without notice.
