CF80 MICROSEPARATOR® SERIES

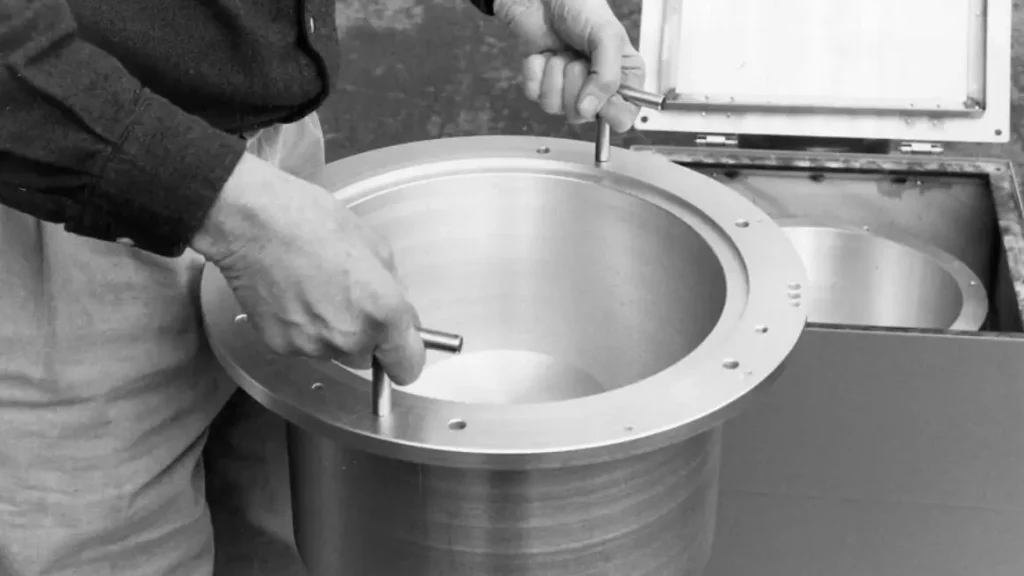

Manually Cleaned Centrifuges
Higher-Capacity Liquid-Solid Separation for Industrial Processes
The CF80 Microseparator® Series is a robust, manually cleaned centrifuge engineered for high-performance liquid-solid separation in demanding industrial applications. Designed to process higher flow rates while handling abrasive solids such as glass, quartz, ceramics, carbide, and metals, the CF80 delivers reliable clarification of process water, machine tool coolants, and oils without the use of consumable filter media.
The CF80 Microseparator® Series is ideal for OEMs and end users seeking a larger-capacity manual-cleaning centrifuge for integration into skid-mounted, tank-mounted, or centralized fluid management systems.
CF80 manual-cleaning centrifuges are commonly used in applications with moderate solids-loading requirements and process flow rates up to 25 GPM. With a bowl solids capacity of approximately 2.75 gallons (693 cu. in). The system is well suited for extended operation between cleanings. Depending on fluid characteristics, particle distribution, and process conditions, the CF80 is capable of removing particles down to 10 microns.
PRODUCT OVERVIEW
CF80
CLEANING CAPACITY
80 lpm
STAND
No Stand
FLOW RATE
25 gpm
SOLIDS VOLUME
2.75 gal / 10.4L
Other
Previous Variants
CF-80M/CF-80M2 /CF-85M

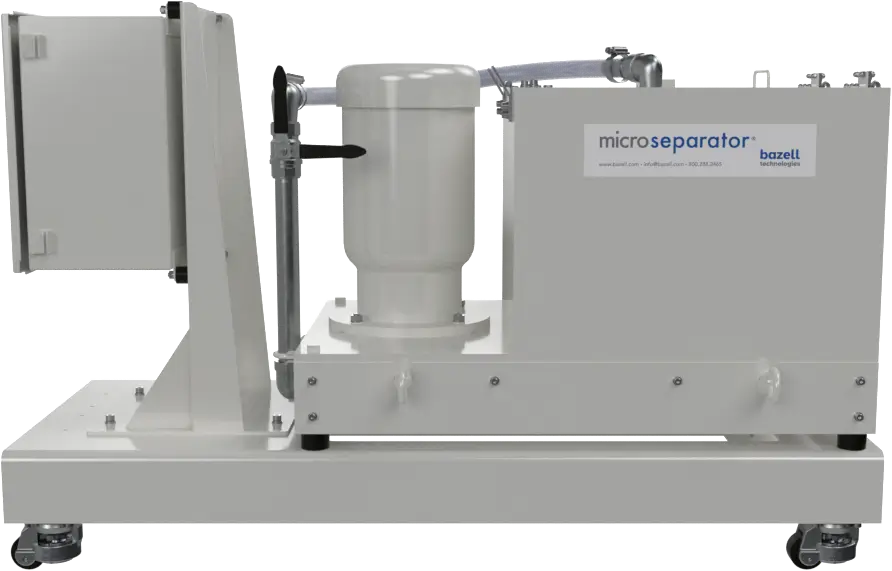

CF80-MS1
CLEANING CAPACITY
80 lpm
STAND
Stainless Steel Mounting Stand
28″ Inlet/Outlet Height
FLOW RATE
25 gpm
SOLIDS VOLUME
2.75 gal / 10.4L
Other
Previous Variants
CF-80SD /CF-80M2SD /CF-85SD

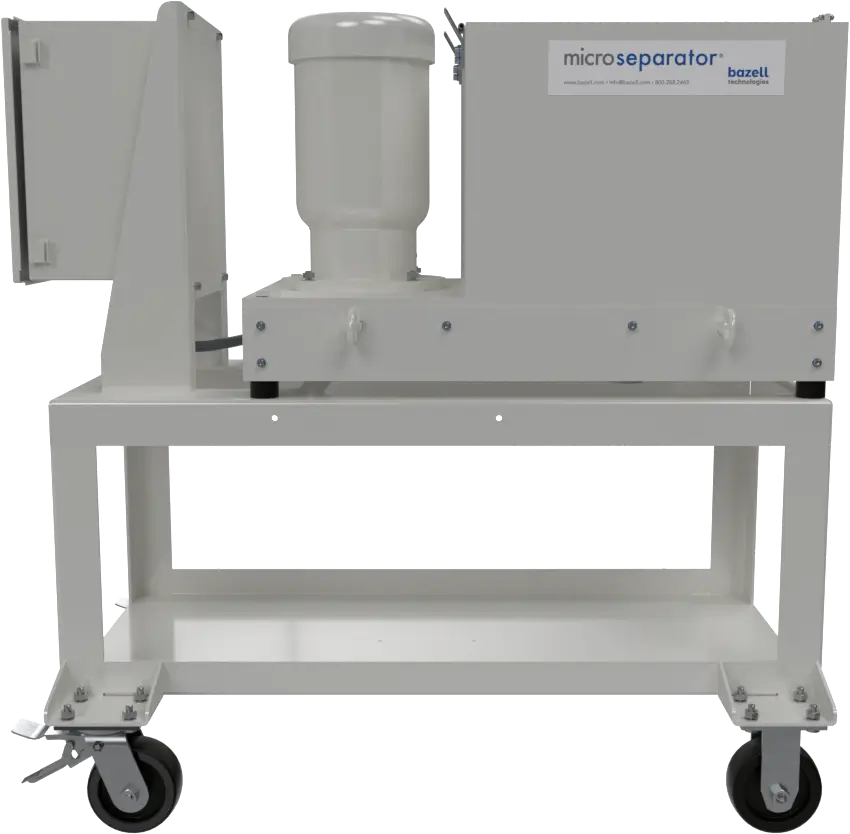

CF80-MS2
CLEANING CAPACITY
80 lpm
STAND
Stainless Steel Mounting Stand
47″ Inlet/Outlet Height
FLOW RATE
25 gpm
SOLIDS VOLUME
2.75 gal / 10.4L
Other
Previous Variants
CF-80Module /CF-80M2 Module /CF-85 Module
Custom Skid Modules & Tank Systems
We offer a wide range of pre-configured tank systems and modular skid designs incorporating the CF50 series. Whether you’re building a new line or upgrading an existing system, our modules offer maximum flexibility.
How Does It Work?
We offer a wide range of pre-configured tank systems and modular skid designs incorporating the CF50 series. Whether you’re building a new line or upgrading an existing system, our modules offer maximum flexibility.
Flexible Integration for OEMs and Custom System Designers
Are you looking to integrate high-performance separation into your own equipment or production line? Our series of MicroseparatorR centrifuges are available as standalone operation units, without structural frames, control panels, or peripheral components.
WE PROVIDE:
- Bare centrifuge units ready for integration into custom systems
- Electrical control boxes, including spare motor starters Integration guidance to help align the Bazell Microseparator® with your existing PLC or automation controls
- Bazell Microseparator® with your existing PLC or automation controls
Whether you’re retrofitting a single machine or designing a full-scale solution, the Bazell Microseparator® have been engineered for flexibility and scalability.
NEED HELP DESIGNING YOUR SYSTEM?
Our technical team is available to support your integration with expert advice and engineering insights. Let’s start the conversation.
