CF50 MICROSEPARATOR® SERIES

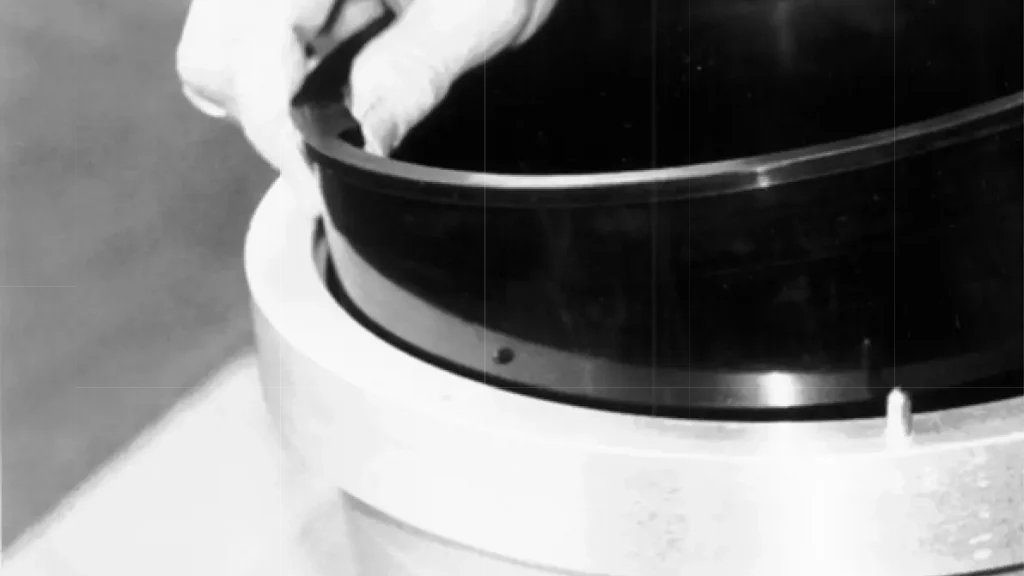

Manually Cleaned Centrifuges
Cleaner Process Fluids. Lower Operating Costs.
The CF50 Microseparator® Series is a robust, manually cleaned centrifuge engineered for high-performance liquid-solid separation across a wide range of industrial applications. Designed to handle abrasive solids such as glass, quartz, ceramics, carbide, and metals, the CF50 delivers reliable clarification of process water, machine tool coolants, and oils without the use of consumable filter media.
The CF50 Microseparator® Series is an ideal solution for OEMs and end users looking to integrate a compact manual-cleaning centrifuge into custom skid, tank, or centralized process systems.
CF50 manual-cleaning centrifuges are commonly applied in processes with lower solids-loading requirements, typically less than 12 gallons of solids accumulation per 8-hour operating period. Depending on fluid characteristics, particle distribution, and process conditions, the system is capable of removing particles down to 10 microns.
PRODUCT OVERVIEW
CCF50
CLEANING CAPACITY
50 lpm
STAND
No Stand
FLOW RATE
12 gpm
SOLIDS VOLUME
1.75 gal / 6.6 L
Other
Previous Variants
CF-50M/CF-50M2 /CF-55 / CF-56M

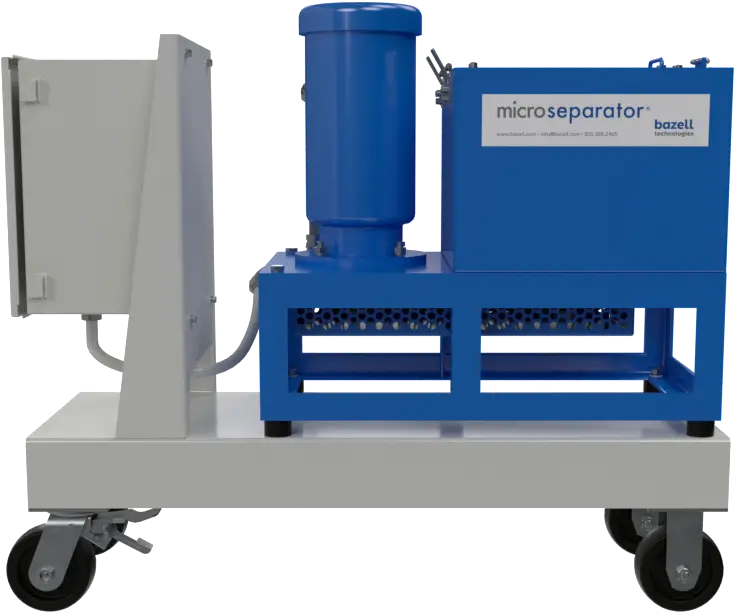

CF50-MS1
CLEANING CAPACITY
50 lpm
STAND
Mounting Stand 1
Stainless Steel Mounting Stand
28″ Inlet/Outlet Height
FLOW RATE
12 gpm
SOLIDS VOLUME
1.75 gal / 6.6 L
Other
Previous Variants
CF-50SD /CF-50M2SD /CF-55SD / CF-56SD

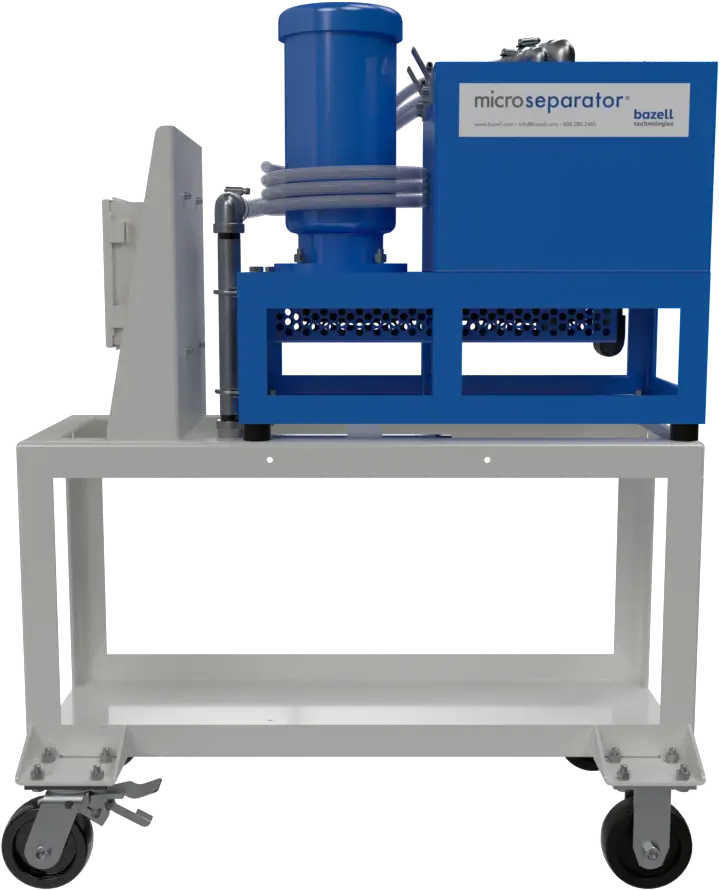

CF50-MS2
CLEANING CAPACITY
50 lpm
STAND
Mounting Stand 2
Stainless Steel Mounting Stand
47″ Inlet/Outlet Height
FLOW RATE
12 gpm
SOLIDS VOLUME
1.75 gal / 6.6 L
Other
Previous Variants
CF-50Module /CF-50M2 Module /CF-55 Module / CF-56 Module
Custom Skid Modules & Tank Systems
We offer a wide range of pre-configured tank systems and modular skid designs incorporating the CF50 series. Whether you’re building a new line or upgrading an existing system, our modules offer maximum flexibility.

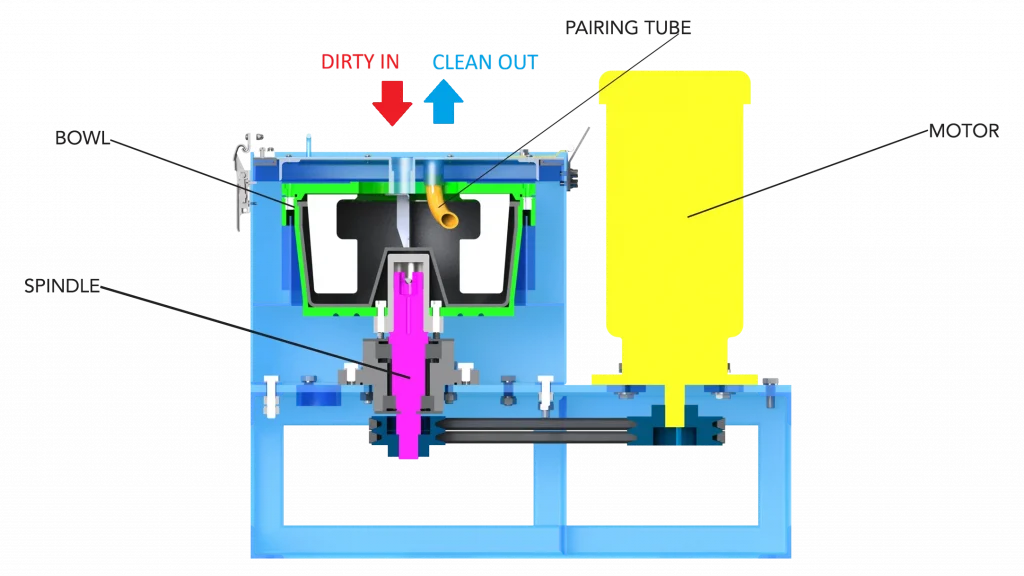

How Does It Work?
We offer a wide range of pre-configured tank systems and modular skid designs incorporating the CF50 series. Whether you’re building a new line or upgrading an existing system, our modules offer maximum flexibility.
Flexible Integration for OEMs and Custom System Designers
Are you looking to integrate high-performance separation into your own equipment or production line? Our series of MicroseparatorR centrifuges are available as standalone operation units, without structural frames, control panels, or peripheral components.
WE PROVIDE:
- Bare centrifuge units ready for integration into custom systems
- Electrical control boxes, including spare motor starters Integration guidance to help align the Bazell Microseparator® with your existing PLC or automation controls
- Bazell Microseparator® with your existing PLC or automation controls
Whether you’re retrofitting a single machine or designing a full-scale solution, the Bazell Microseparator® have been engineered for flexibility and scalability.
NEED HELP DESIGNING YOUR SYSTEM?
Our technical team is available to support your integration with expert advice and engineering insights. Let’s start the conversation.
