How do Self-Cleaning Microseparators® work?
Bazell´s automatic Microseparator® is a centrifugal processing tool designed to purify and separate solid particulate matter from a liquid medium (water-based coolants and oil-based fluids) by exerting high g-forces to rapidly accelerate the particle separation process.

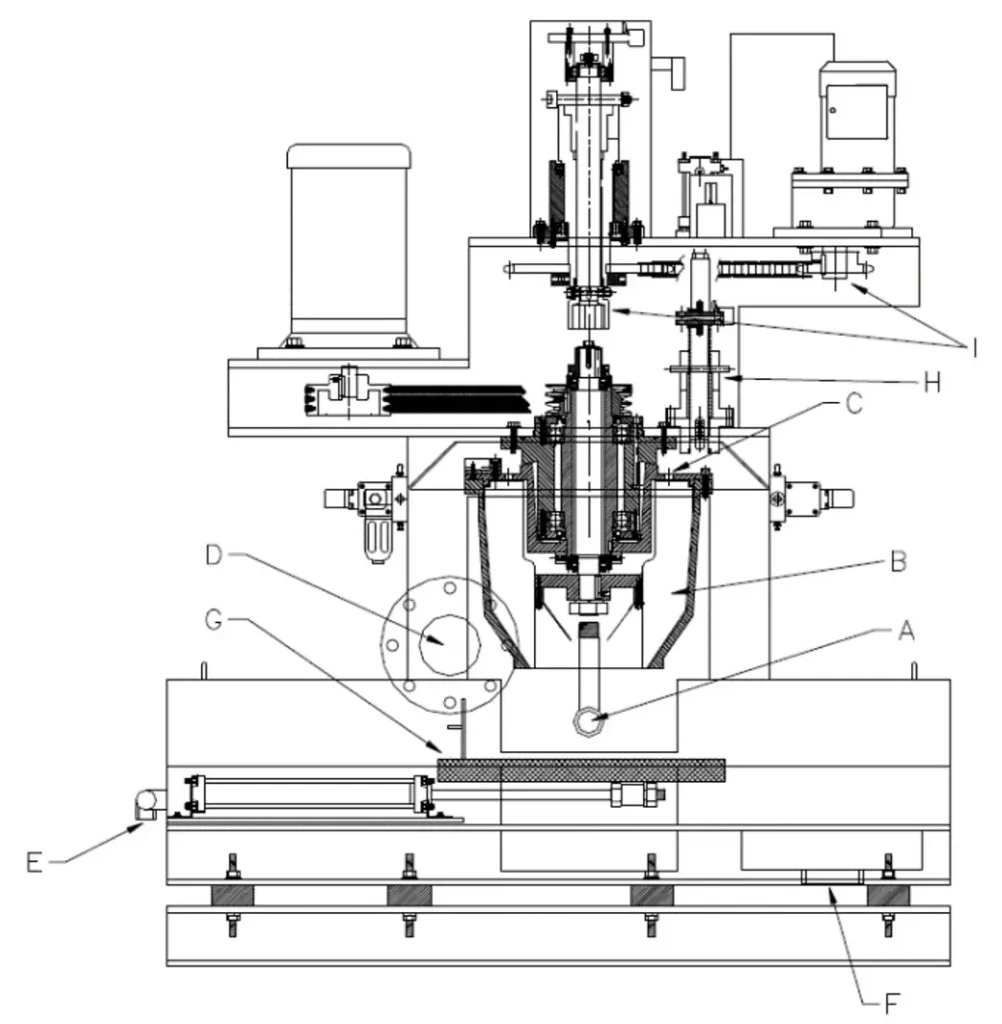

Feed enters the dirty liquid inlet (A) and progresses upwardly through the rotor body (C). Centrifugal force is applied to the liquid stream in the main body of the rotor causing solid particulate to move toward the rotor wall.
Clarified liquid overflows through the top of the rotor (C). The clean overflow discharges into the segregated upper frame and drains from the clean liquid outlet (D). Solids deposited in the rotor are compacted by centrifugal force and allowed to be built until removed during the cleaning cycle. A feed timer or parts counter is used to determine when the cleaning cycle will be initiated.
During the feed cycle, the lower cabinet is flushed continuously at (E) to minimize the accumulation of solids in that area. When the cleaning cycle initiates, the feed pump stops flowing to the Microseparator® or a valve diverts flow. The drive motor is deenergized, and the rotor is brought to a full stop via DC braking via the VFD. Any residual liquid remaining in the rotor will drop into the lower cabinet (F) and then drain back to the process tank.
The accumulated solids are removed from the rotor in the following manner. First, a solenoid valve energizes, and the drain plate is pneumatically retracted (G). This movement opens the bottom of the rotor to the sludge drum below. A second air solenoid pneumatically operates the stopper assembly (H) which locks the rotor in position and engages the scraper drive (I). Clockwise and counterclockwise rotations of the scraper (B) clean the solid particulate from the walls of the rotor causing the solids to drop into the sludge drum below.
After the sludge has been removed from the rotor, all the above operations are reversed, and the Microseparator® returns to full speed. Normal operation will continue until the system is shut down, or vibration is detected, which initiates an automatic cleaning cycle. On normal shutdown, a complete cleaning cycle is initiated to ensure that the Microseparator® shuts down clean.
Benefits of Self-cleaning Microseparator® Centrifuge
- Reduces waste volume and sustainability impact: Our centrifuges contribute to reducing waste volume and recycling valuable resources. This not only supports your sustainability goals but also helps protect the environment.
- Extended Fluid Life: Keep fluids cleaner for longer, reducing consumption and disposal costs.
- Increased Uptime & Tool Life: Minimize wear on tools and reduce machine maintenance downtime.
- Cleaner Machines, Healthier Workplace: Lower bacteria and odor buildup due to cleaner fluids at correct concentrations.
- Automatic particle and water separation in a single operation
- Removal of particles down to a #-micron level
- Consistent throughput without flow reduction (filters clog)
- Continuous water separation
- Minimized Operation and Maintenance costs
- Negligible disposal costs (no filter or membrane media to dispose of)
- No loss of lubricant additives
